WT-E0240-20dB
1.0-40GHz微帶20dB耦合器
Technical Data Sheet
|
S/N
|
Item
|
Parameters
|
|
|
1
|
Frequency Range |
1.0 ~ 40GHz |
|
|
2
|
Coupling Factor |
20dB±1.0dB
|
|
|
3
|
Coupling Sensitivity |
≤±1.2dB
|
|
|
4
|
Insertion Loss |
≤2.0dB (Excluding Coupling Loss 0.04dB) |
|
|
5
|
VSWR
|
≤1.7:1
|
|
|
6
|
Directivity
|
≥10dB
|
|
|
7
|
Impedance
|
50 Ohms |
|
|
8
|
Power Handling |
Incident: 20W Max. |
Reflected: 1.0W Max. |
|
9
|
Connectors
|
2.92mm(K)-Female
|
|
|
10
|
Surface Finish |
Painted Black |
|
|
11
|
Temperature Range |
-40℃ ~ +85℃ |
|
|
12
|
Material
|
Housing: 6061 Aluminum alloy Connectors: Stainless Steel |
Other screw: Stainless Steel |
|
13
|
Dimensions
|
73*17*11mm
|
|
|
14
|
Net weight |
0.06 KG |
|

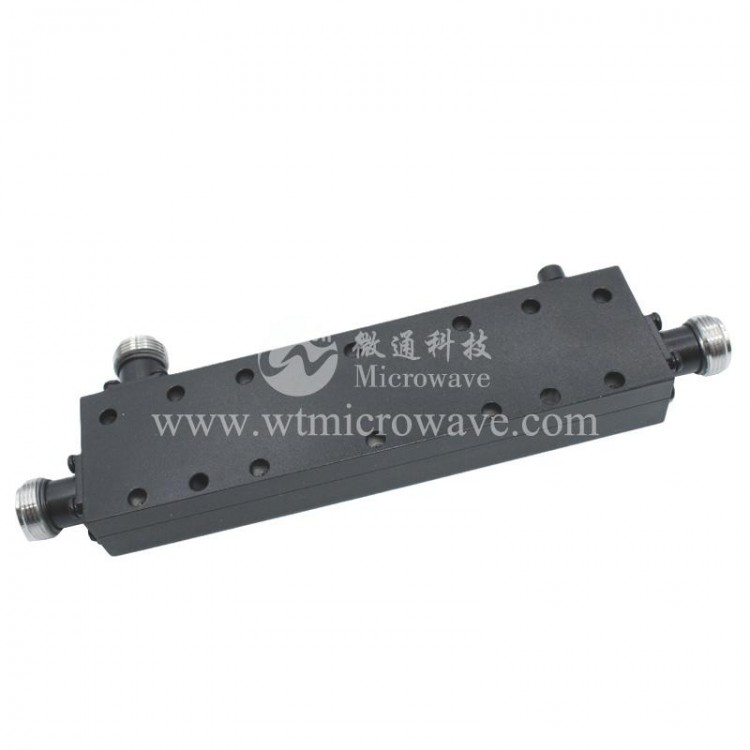

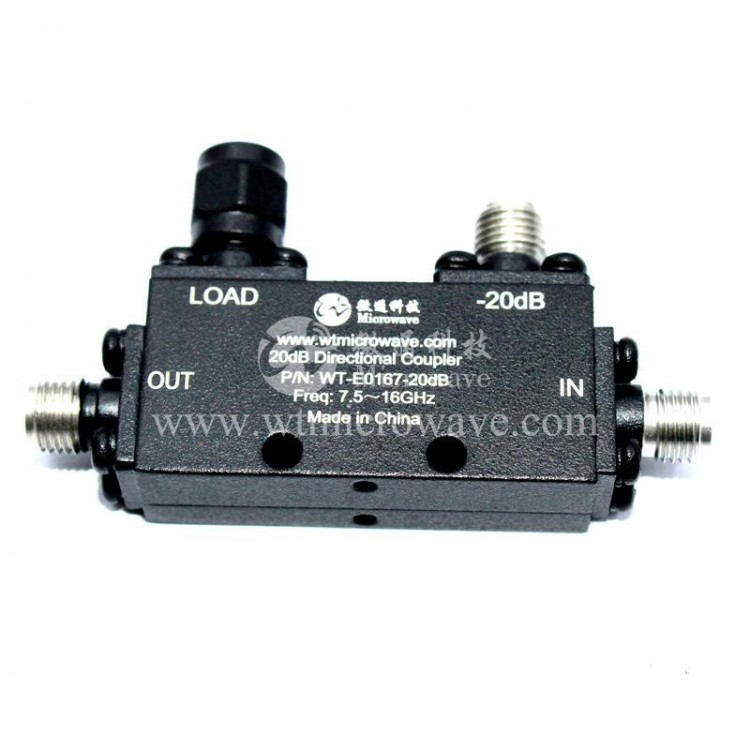

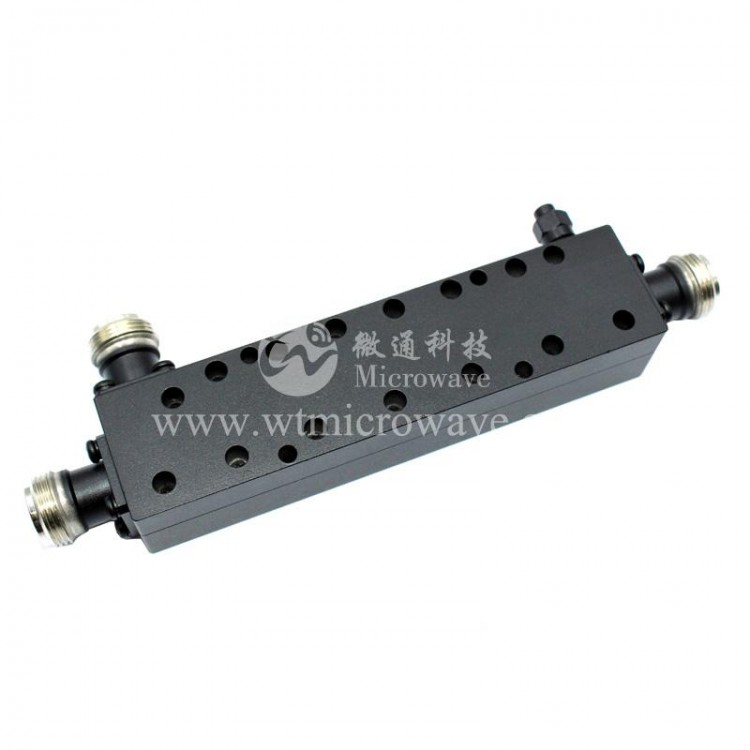

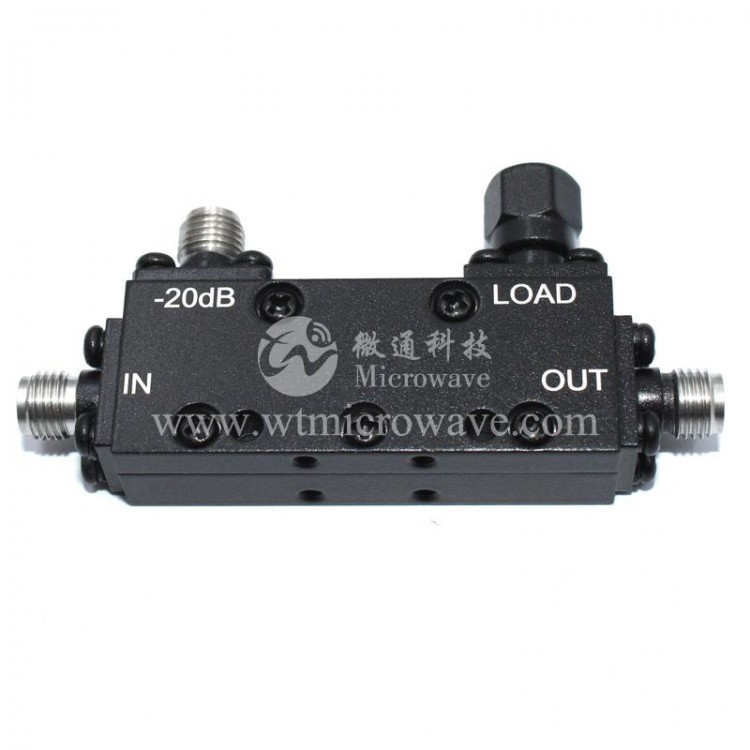

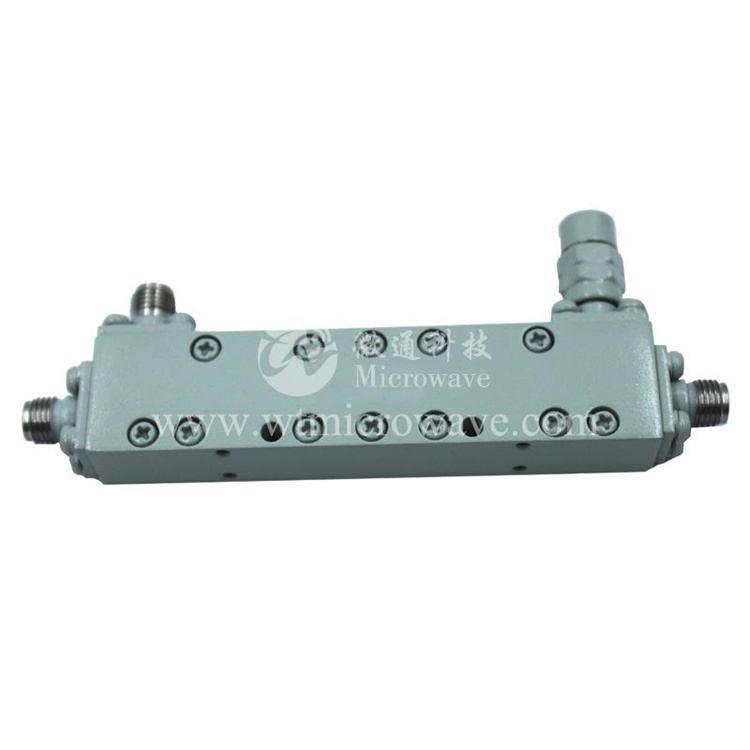

產(chǎn)品細(xì)節(jié)圖
