鉆機系列：
分體鉆機( Separated DTH Surface Drill Rig)：
ZGYX412/412-1/412D分體式露天潛孔鉆機
ZGYX412/412-1是志高公司在原有410F鉆機的基礎上，升級優化了產品操作臺、行走部件、液壓系統、推進梁、回轉頭，目的是*大化的提升鉆機的功能。行走部件采用柱塞馬達，大大延長了鉆機的行走壽命。特別的操作臺的改進，由原來的二人操作改成一人操作，提高工作效率的同時又降低了成本，為客戶考慮得更加細致周到。
配套空壓機推薦：
柴移：110SCY-10 110SCY-14.5
電移：75SDY-14.5
ZGYX412/412-1/412D Separated DTH Surface Drill Rig
ZGYX412/412-1 is that on the basis of the original 410 F drilling rig, zhigao company upgraded and optimized the product operating table, walking parts, hydraulic system, propulsion beam, rotary head, the purpose is to maximize the function of drilling rig. The running part adopts plunger motor, which greatly prolongs the walking life of drilling rig. The improvement of the special operating table, from the original two-person operation to one-person operation, improve work efficiency while reducing the cost, for customers to consider more meticulous and thoughtful.
Recommended Air compressors:
Diesel portable screw compressor:110SCY-10 110SCY-14.5
Electric portable screw compressor:75SDY-14.5
ZGYX416/416-1分體式露天潛孔鉆機
該機型配置雙馬達回轉頭及回轉轉速可調多路閥，回轉扭矩可達1950N.m,滿足了Φ76鉆桿、130孔徑的需求，滿足了部分客戶對軟巖層高速鉆孔的需求。同時416系列機型標配工程履帶、柱塞馬達，使得爬坡能力更強，質量更加穩定可靠，該機型為同類機型中配置極高的產品。
配套空壓機推薦：
柴移：141SCY 158SCY-17
電移：90SDY-14.5
ZGYX416/416-1 Separated DTH Surface Drill Rig
The model is equipped with dual motor rotary head and rotary speed adjustable multi-way valve, rotary torque up to 1950 N.m, to meet the Φ76 drill pipe ,130 aperture requirements, some customers for soft rock high-speed drilling requirements. At the same time 416 series model standard engineering track, plunger motor, make climbing ability stronger, quality more stable and reliable, this model is the highest configuration of the same type of products.
Recommended Air compressors:
Diesel portable screw compressor: 141SCY 158SCY-17
Electric portable screw compressor:90SDY-14.5
ZGYX-420/420-1/420D分體式露天潛孔鉆機
1.該型號鉆機配套動力標準分為玉柴四缸YC4D80、電動45kW兩種型號。該機加強了各結構部分的強度，完全可滿足各種工況的功能要求；
2.采用雙擺線馬達帶動回轉頭，大大加強了鉆機的扭矩，鑿巖孔徑范圍更大；
3.新型外罩殼設計使鉆機的維護使用更方便，并加強了鉆機的美觀度；
4. 可選裝干式集塵器裝置，鉆鑿無粉塵，更加環保、節能；
5. 420機型標準裝備工程履帶柱塞行走馬達，爬坡更有力、質量更可靠。
配套空壓機推薦：
柴移：186SCY-18
電移：132SDY-17
ZGYX-420/420-1/420D Separated DTH Surface Drill Rig
1. matching power standard of this type of drilling rig is divided into two types: Yuchai four cylinder YC4D80、 electric 45 kW. The machine strengthens the strength of each structural part, and can completely meet the functional requirements of various working conditions;
2. the double cycloid motor is used to drive the rotary head, the torque of the drilling rig is greatly enhanced, and the drilling aperture is larger.
3. the new design of the outer cover shell makes the rig more convenient to maintain and use, and strengthens the beauty of the rig;
4. optional installation of dry dust collector device, drilling without dust, more environmental protection, energy saving;
5.420 standard equipment engineering crawler plunger walking motor, climbing more powerful, more reliable quality.
Recommended Air compressors:
Diesel portable screw compressor: 186SCY-18
Electric portable screw compressor:132SDY-17
ZGYX425/425-1/425G分體式露天潛孔鉆機
該產品性價比高、環保安全，節能高效的分體式潛孔鉆機。廣泛應用于各類露天礦山、采石場、工程工地等。是志高公司推出的新一代產品的經典之作?？讖椒秶?10-138mm。該機車身低矮、新型罩殼設計，帶機身調平功能。
配套空壓機推薦：
柴移：186SCY-18 200SCY-21
電移：160SDY-13
ZGYX425/425-1/425G Separated DTH Surface Drill Rig
This product has the advantages of high cost-performance, environmental protection and safety, energy-saving and efficient split-type drilling rig. Widely used in all kinds of open pit mines, quarries, engineering sites and so on. It is the classic work of a new generation of products launched by Zhigao Company. Aperture range mm.110-138 The body of the machine is low, the new shell design, with the fuselage leveling function.
Recommended Air compressors:
Diesel portable screw compressor: 186SCY-18 200SCY-21
Electric portable screw compressor:160SDY-13
ZGYX430/430-1分體式露天潛孔鉆機
1.該型鉆機是志高傳統的重型分體鉆機，其高強度的全功能設計和高級別的配置深受廣大用戶的認可；
2.高壓油泵帶動全系高壓元件，使得產品適用于各種孔徑和工況；
3. 可選配*大回轉扭矩5500N.m，適用于坑基錨桿、根管、大孔徑麻花鉆桿作業。
配套空壓機推薦：
柴移：300SCY-24 200SCY-21
電移：185SDY-17
ZGYX430/430-1 Separated DTH Surface Drill Rig
1. this type of drilling rig is a traditional heavy-duty split drilling rig, its super-strength full-function design and high-level configuration is well recognized by the majority of users;
2. high-pressure oil pump drives all high-pressure components, making the product suitable for various aperture and working conditions;
3. optional maximum rotary torque of 5500 N.m, suitable for pit foundation anchor, root canal, large aperture hemp drill pipe operation.
Recommended Air compressors:
Diesel portable screw compressor:300SCY-24 200SCY-21
Electric portable screw compressor:185SDY-17
ZGYX420S/425S錨固鉆機( Bolter)
1.該型鉆機配套動力標準為雙動力設計。標準配置φ76mm的三米鉆桿或選配多種麻花鉆桿。是柴、電雙用機型，可隨時動力切換；
2.采用大扭矩雙擺線馬達帶動回轉頭，增加了鉆機的扭矩，*大可達5600N.m，使得其鑿巖孔徑范圍更大，可廣泛適用于基坑錨桿、跟管、大孔徑麻花鉆桿作業；
3.回轉雙速切換閥操作方便，可滿足不同扭矩和速度的作業需要。其中425S標配卸桿裝置；
4.標準裝配柱塞馬達，國際工程機械行走履帶，爬坡更有力、質量更可靠.
ZGYX420S/425S Bolter
1. the matching power standard of the rig is dual power design. A standard three-meter drill pipe φ76mm or a variety of twist drill pipes. Is the firewood, the electric dual-use model, may at any time power switch;
The 2. uses a large torque double cycloid motor to drive the rotary head, which increases the torque of the drilling rig up to 5600 N.m, which makes the drilling aperture range larger, and can be widely used in foundation pit bolt, heel pipe, large aperture hemp drill pipe operation;
3. rotary double speed switch valve is easy to operate and can meet the operation needs of different torque and speed. Among them 425 S standard discharge rod device;
4. standard assembly plunger motor, international construction machinery walking track, climbing more powerful, more reliable quality.
ZGM 1240A
本鉆機是集機、液、電等技術為一體的綜合體，采用“軟”連接來構成這個綜合體系。具有工作穩定、行走速度快、工作效率高、鉆具使用壽命長、能量損耗低、操作簡單及具有自動保護等多種功能，它能應用于不同的場合、不同的領域，并具有極強的應變能力，可以滿足用戶的多種需要。
主要用途及試用范圍：適用于建筑施工、公路施工，以及其他的機械化工程。該鉆車使用接卸式鉆桿、鉆鑿垂直、傾斜、水平主打直徑為90-165毫米孔，*大鉆孔深度可達25米。
ZGM 1240A Separated DTH Surface Drill Rig
The drilling rig is a combination of machine, liquid, electricity and other technologies, using "soft" connection to form this integrated system. It has many functions, such as stable work, fast walking speed, high working efficiency, long service life of drilling tools, low energy loss, simple operation and automatic protection. It can be applied to different occasions, different fields, and has extremely strong strain ability, which can meet the needs of users.
Main uses and trial scope: suitable for construction, highway construction, and other mechanized works. The drill car uses the joint-unloading drill pipe, drilling vertical, inclined, horizontal main diameter of 90-165 mm hole, the maximum drilling depth can reach 25 meters.
一體鉆機(Integrated DTH Surface Drill Rig):
ZGYX421T+一體鉆機
1. 該鉆機配套動力為玉柴YC6J190，搭配12/14.5螺桿空壓機。滿足80-115mm孔徑，標配干式集塵器；
2. 利用其單一動力同時驅動螺桿式空壓機和鉆機液壓系統，相比分體鉆機綜合油耗節能35%，保養費用下降50%；
3. 核心液壓元件由歐洲進口，可靠的的液壓系統大大減少了系統維護保養工作量，方便實用；
4. 強有力的雙速液壓行走機構，越野能力強，大扭矩的回轉馬達可以輕松應對卡鉆；
5. 兩級干式集塵裝置，環保的同時也有助于提高生產效率；一體化技術，解決了工程、礦山空壓機移動與遠距離管理的難題。
ZGYX421T+ Integrated DTH Surface Drill Rig
1. matching power of the rig is jade wood YC6J190, with 12/14.5 screw air compressor. satisfying the aperture mm 80-115, standard dry dust collector;
2. use its single power to simultaneously drive the screw air compressor and drilling rig hydraulic system, compared with the split drilling rig comprehensive fuel consumption energy saving 35%, maintenance costs down 50%;
3. the core hydraulic components imported from Europe, reliable hydraulic system greatly reduce the system maintenance workload, convenient and practical;
4. powerful double-speed hydraulic walking mechanism, cross-country ability, large torque of the rotary motor can easily cope with the drill;
5. two-stage dry dust collection device, environmental protection is also helpful to improve production efficiency; integrated technology, solve the engineering, mine air compressor movement and long-distance management problems.
ZGYX452+
1，高端產品，低端價格，性價比高。
2，ZGYX-452一體式露天潛孔鉆機利用其單一動力的同時驅動螺桿式空壓機和鉆機液壓系統的工作原理，*重要的優勢是節能，相比分體鉆機綜合油耗節能35%，保養費用下降50%。
3，強勁有利的雙速液壓行走機構，行走速度快，越野能力強。
4，大扭矩的回轉馬達可以輕松應對卡鉆。
5，兩級干式集塵裝置，環保的同時也有助于提高生產效率。
6，布局合理的集成式操作臺，功能明晰，操作方便。
7，核心液壓元件由歐洲進口，可靠的液壓系統大大減少了系統的維護保養工作量，方便實用。
8，一體化技術，解決了工程、礦山空壓機移動與遠距離管理的難題.
ZGYX452+ Integrated DTH Surface Drill Rig
1, high value products, attractive prices,best product to buy. 2, ZGYX-452 the working principle of the screw type air compressor and the hydraulic system of the drilling rig, the most important advantage is the energy saving, compared with the energy saving 35%, the maintenance cost is reduced by 50%.
3, strong and favorable double speed hydraulic walking mechanism, fast walking speed, strong off-road ability.
4, large torque rotary motor can easily cope with the drill.
5, two-stage dry dust collection device, environmental protection also helps to improve production efficiency.
6, reasonable layout of the integrated console, clear function, easy to operate.
7, the core hydraulic components imported from Europe, reliable hydraulic system greatly reduce the system maintenance workload, convenient and practical.
8, the integration technology, has solved the engineering, the mine air compressor movement and the long distance management difficult problem.

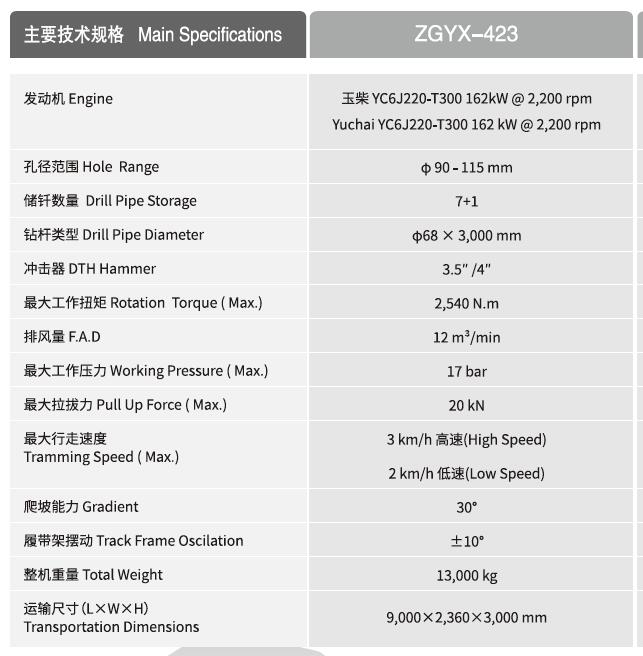

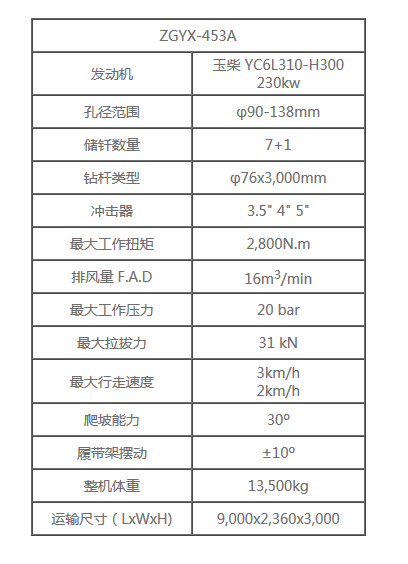

ZGYX423/453A
高效
自動換釬及強大的越野性能縮短了鉆機輔助時間。大排量高壓螺桿式空壓機使得排渣徹底，更有利于鑿巖速度的大幅度增加，減少鉆機的消耗。強有力的推進、回轉設計，在滿足高速鑿巖的基礎上，解決了復雜巖層的卡鉆難題。單人操作降低了人工成本。
環保
標配的雙級干式集塵裝置和選配的濕式除塵裝置，在解決礦山和操作人員環保需求的同時也大幅度降低粉塵對設備本身的污染。
節能
單臺發動機同時驅動螺桿式空氣壓縮機和液壓系統，相比分體式鉆機柴油機的總功率下降約35%，保養費用下降50%。
安全
履帶調平裝置使得鉆機上下坡重心更穩，強大的作業能力減少了礦山所需設備和人員的數量，釬倉和駕駛室的保護設計杜絕了人員安全隱患。
ZGYX423/453A Integrated DTH Surface Drill Rig
High efficiency
Automatic brazing change and strong off-road performance shorten the rig auxiliary time. The large displacement high pressure screw air compressor makes the slag discharge thoroughly, which is more conducive to the large increase of drilling speed and reduce the consumption of drilling rig. Strong propulsion and rotary design, on the basis of satisfying high-speed rock drilling, solve the problem of drilling in complex rock layers. Single operation reduces labor costs.
Environmental Protection
The standard two-stage dry dust collecting device and wet dust collecting device can solve the environmental protection demand of mine and operator and reduce the pollution of dust to the equipment.
Energy conservation
A single engine simultaneously drives a screw-type air compressor and a hydraulic system, and the total power of a split-type rig diesel engine is reduced by about 35% and the maintenance cost is reduced by 50%.
Security
The crawler leveling device makes the center of gravity of the upper and lower slopes of the drilling rig more stable, and the powerful working ability reduces the number of equipment and personnel needed in the mine, and the protection design of the brazing bin and the cab eliminates the hidden danger of personnel safety.
ZGYX-660A-中型自動一體式露天頂錘鉆機
1.高壓系統設計，配置20kW高頻104鑿巖機，使得鉆機具有強大的鑿巖能力和優質的油耗指示。
2.折疊臂的設計，工作范圍大，同時重心更穩，使得鉆機*高進行速度達到每小時3.2公里。
3.頂級配置的同時，鉆車在購買、使用、保養成本上與進口鉆車相比大幅度降低。機倉內維修空調寬敞，所有保養點觸手可及
ZGYX-660A Integrated DTH Surface Drill Rig
1. high pressure system design, equipped with 20 kW high frequency 104 drilling machine, so that the drilling rig has a strong drilling capacity and excellent fuel consumption indication.
2. the design of the folding arm, the working range is large, while the center of gravity is more stable, so that the maximum speed of drilling rig to 3.2 km per hour.
At the same time 3. the top configuration, the cost of purchase, use and maintenance of the drill car is greatly reduced compared with the imported drill car. Air conditioning in the machine warehouse is spacious, all maintenance points are within reach
ZGYX-650A一體式露天頂錘鉆機
1.履帶調平裝置使得鉆機上下坡重心更穩，履帶附著力更強。釬倉和駕駛室的保護設計杜絕人員安全隱患。
2.鉆機一次定位可開鑿多個巖孔，靈活的鉆臂和越野功能，可應對多種原始地貌的鑿巖要求；
3.配備自行設計的ZY103高頻液壓鑿巖機，使得鉆機的單位能耗具有無與倫比的競爭力。
ZGYX-650A Integrated DTH Surface Drill Rig
1. track leveling device makes the center of gravity of the upper and lower slopes of the drilling rig more stable and the track adhesion is stronger. the protection design of the brazing bin and cab to eliminate the hidden danger of personnel safety.
2. drilling rig can drill multiple holes at one time, flexible drilling arm and off-road function, and can meet the drilling requirements of various original landforms;
3. equipped with self-designed ZY103 high-frequency hydraulic drilling machine, the unit energy consumption of drilling rig has unparalleled competitiveness.
ZGYX-454/455一體式露天潛孔鉆機
1. 駕駛室寬敞、視野開闊，人性化駕駛室，強調安全性能，前窗防護柵欄。
2. 雙馬達回轉頭，擺線式液壓雙馬達回轉頭，輸出扭矩大，故障率極低。
3. 圓盤自動換桿器，圓盤自動換桿器，可自由挑選鉆桿，延長鉆具壽命。
專利設計的浮動式卷管器，消除油管變形集中點，延長使用壽命。
4. 推進梁， 油缸鋼絲繩推進，推進力控制精度高，回轉頭運行平穩
能鉆各中介角度孔和水平腳底孔。
5. 除塵裝置，志高掘進的兩級除塵技術領先行業。除塵清洗過濾面積大，自動連續自清式除塵。除塵濾芯陣列可以方便地拆卸，維護工作效率高；集成罩可以上下滑動，清晰觀察開孔情況，進行開孔控制。
6. 強大的牽引力，履帶式重型底盤，履帶架液壓擺動裝置擺架±10°；
牽引力大，足夠的越野能力提高專場效率。
ZGYX-454/455 Integrated DTH Surface Drill Rig
1. cab spacious, wide view, humanized cab, emphasizing safety performance, front window protective fence.
2. double motor turn head, cycloidal hydraulic double motor turn head, output torque is large, failure rate is very low.
3. disc automatic pole changer, disc automatic pole changer, free to select drill pipe, extend the life of drill tool.
The patent design floating pipe reel, eliminates the tubing deformation concentration point, prolongs the service life.
4. propulsion beam, oil cylinder wire rope propulsion, propulsion control accuracy, turn head smooth operation
Can drill each intermediary angle hole and horizontal foot bottom hole.
5. dust removal device, Zhigao tunneling two-stage dust removal technology leading industry. Dust cleaning filter area is large, automatic continuous self-cleaning dust removal. the dust removal filter core array can be easily removed and the maintenance work efficiency is high; the integrated cover can slide up and down, clearly observe the opening condition, and carry out the opening control.
6. strong traction, crawler heavy chassis, crawler hydraulic swing device swing ±10°;
Large traction, enough off-road capacity to improve the efficiency of the field.
采礦鉆機(Crawler DTH Drill Rig):
ZEGA UP45
1.ZEGA UP45履帶式潛孔采礦鉆機是一款我司自行研發的新型、高效、專業的地下中深孔鉆機。主要用于地下采礦、搶險救災、水利工程及天路錨固等工程。
2，該機吸收進口采礦鉆機的工作能力，結合國內中深孔孔鉆孔工藝和行情。一次性購置成本低，使用及維護成本低，耗材資源豐富，上手簡單。
3，關鍵液壓、電器元件使用進口品牌。確保產品在地下惡劣環境中使用的可靠性。控制系統已在市場得到充分驗證，性能穩定可靠。
4，柴電雙動力。柴油發動機負責行走，具備高、低2種行走速度。電動機負責工作，節能、低噪音。
5，使用水霧除塵，改善工作周邊空氣環境。水量可按照實際工況調節，缺水時警報提醒。
ZEGA UP45 Underground Crawler Mounted DTH Production Hole Drill
1, ZEGA UP45 crawler drilling rig is a new, efficient and professional underground drilling rig developed by our company. Mainly used in underground mining, emergency relief, water conservancy projects and Tianlu anchoring projects.
2, this machine absorbs the working capacity of imported mining drilling rig, combined with the domestic deep hole drilling technology and market. The one-time purchase cost is low, the use and maintenance cost is low, the consumables resources are abundant, the hand is simple.
3. import brand for key hydraulic and electrical components. Ensure the reliability of the product used in the underground harsh environment. The control system has been fully verified in the market, and the performance is stable and reliable.
4. Double power. Diesel engine is responsible for walking, with high and low two kinds of walking speed. Motor is responsible for work, energy saving, low noise.
5. Use water mist to remove dust and improve the ambient air. The water quantity can be adjusted according to the actual working condition, and the alarm is reminded when the water is short of water.
水機鉆機(Water Well Drill Rig):
ZGSJ200/450
1. 履帶式多功能水井鉆機是一款全新設計的新型、高效、多功能液壓鉆機。主要用于鉆鑿水井、檢測井、地?zé)峥照{(diào)井等鉆桿作業。
2. 配置高端，可廣泛適用于多個鉆井領域，結合國內外優質產品優勢，關鍵液壓元件選用進口品牌，確保整機的可靠性，是目前國內領先的水井鉆車；
3. 起重卷場機可靈活吊裝1.5噸以內的鉆具或輔具，可以大大減輕操作者的勞動強度；
4. 配大扭矩行走馬達，可在不同工況自由、快速的行走。
5. 推進、提升配有快慢檔，可以提高打孔效率，大扭矩回轉頭，回轉速度有兩檔，并且轉速可調，適用于不同孔徑和地質狀況。
ZGSJ200/450 Water Well Drill Rig
1. crawler multi-function well drilling rig is a new design, high efficiency and multi-function hydraulic drilling rig. Mainly used for drilling wells, testing wells, geothermal air-conditioning wells and other drill pipe operations.
2. configuration of high-end, can be widely used in a number of drilling fields, combined with the advantages of excellent products at home and abroad, key hydraulic components selected import brand, to ensure the reliability of the whole machine, is the domestic leading first-class drilling rig;
3. hoist can be flexibly hoisted within 1.5 tons of drilling tools or accessories, can greatly reduce the labor intensity of operators;
4. equipped with large torque walking motor, can walk freely and quickly in different working conditions.
5. propulsion, lifting equipped with speed and slow gear, can improve the drilling efficiency, large torque turn head, rotary speed has two gear, and speed adjustable, suitable for different aperture and geological conditions.
掘進鉆機( Drill Rig)：
ZGYX-811
志高掘進地下單臂掘進系列鉆機，廣泛適用于地下礦山開采，小型隧道掘進及錨桿孔等加固工程，其精心設計的外形、配置、系統控制等各方面將會提供給客戶更優質的穿孔體驗。
ZGYX-811針對窄薄礦脈開采方式及巷道尺寸特點，專業化設計了具有高通過性的超窄鉸連接式懸浮底盤，非常適合于地下超小巷道轉場作業。采用模塊化快拆卸接連的組合型設計，可非常方便的實現整機分段拆解下井及井下組裝工作。
ZGYX-811 Drill Rig
Zhigao tunneling underground single-arm tunneling series drilling rig, widely used in underground mining, small tunnel excavation and anchor hole reinforcement works, its carefully designed shape, configuration, system control and other aspects will provide customers with a better perforation experience.
According to the mining method of narrow and thin veins and the characteristics of roadway size, the ZGYX-811 specially designed the super-narrow hinged suspension chassis with high passability, which is very suitable for the underground super-small roadway turning field operation. The modular quick-disassembly design can be used to realize the assembly of the whole machine.
ZGYX-812
ZGYX-812掘進臺車是一款專門用于小型巷道鑿巖的掘進鉆機，既可以實現水平爆破鉆孔進，也可用于錨桿等特殊應用，配備高效的液壓高頻鑿巖機ZY103，*大功率達15kW,特有的雙緩沖機構能有效吸收反沖能量，確保鉆機的壽命，自動平行定位功能確保鉆孔間的平行，是一款替代人工鑿巖的利器。
ZGYX-812 Drill Rig
ZGYX-812 roadheader is a kind of roadheader specially used for small tunnel drilling. It can not only achieve horizontal blasting drilling, but also be used for special applications such as anchor bolt. It is equipped with high-efficiency hydraulic high-frequency rock drill ZY103, with a maximum power of 15kw, The special double buffer mechanism can effectively absorb the recoil energy, ensure the service life of the drilling machine, and ensure the parallelism between the drilling holes with the automatic parallel positioning function. It is a sharp tool to replace the artificial drilling.
ZGYX-813
ZGYX-813掘進臺車，廣泛應用于地下礦山開拓，小型隧道掘進，也可用于錨桿孔等加固工程。精心設計的ZGYX-813從外型、配置、系統控制等各方面將提供給客戶更優質的穿孔體驗。其基于安全考慮的底盤以及升降安全頂棚，保證了設備的通過性與穩定性，使操作員能夠始終處于安全的位置作業；“直接”定位的鉆臂系統實現快速準確的鉆孔定位；配備的ZGYX-104鑿巖機功率可達20kW,其60Hz的頻率是高效鑿巖的有力保障，雙緩沖機構減震系統、鉆進自動適應系統提高穿透效率的同時有效降低了鉆具的消耗，提高生產效率。
液壓鑿巖控制系統，擁有自動開孔、無潤滑無水不沖擊、回轉壓力自動控制推進、推進壓力自動控制沖擊及自動防卡釬功能；行走前后兩檔變速，過載爬坡時，發動機免熄火，自動適應降速及增大輸出扭矩；電器系統采用CAN通訊連接技術，模塊化分區域布局設計，簡單線路，提高可靠性；獨有的孔底沖渣功能，鉆孔干凈，裝藥 方便。
ZGYX-813 Drill Rig
ZGYX-813 tunneling trolley, widely used in underground mine development, small tunnel excavation, but also used in anchor hole reinforcement works. Carefully designed ZGYX-813 from the appearance, configuration, system control and other aspects will provide customers with a better quality perforation experience. The chassis and lifting safety roof based on safety considerations ensure the passage and stability of the equipment, so that the operator can always work in a safe position; the "direct" positioning drilling arm system to achieve rapid and accurate drilling positioning; equipped with ZGYX-104 drilling machine power up to 20 kW, its 60 Hz frequency is a powerful guarantee for efficient drilling, double buffer mechanism shock absorption system, drilling automatic adaptation system to improve penetration efficiency while effectively reducing the consumption of drilling tools, improve production efficiency.
Hydraulic rock drilling control system, with automatic opening, no lubrication, no water, no impact, rotary pressure automatic control propulsion, propulsion pressure automatic control impact and automatic anti-card brazing function; before and after two gear speed change, overload climbing, the engine without flameout, automatically adapt to reduce speed and increase output torque; electrical system using CAN communication connection technology, modular sub-area layout design, simple lines, improve reliability; unique hole bottom punching function, drilling clean, easy charge.
